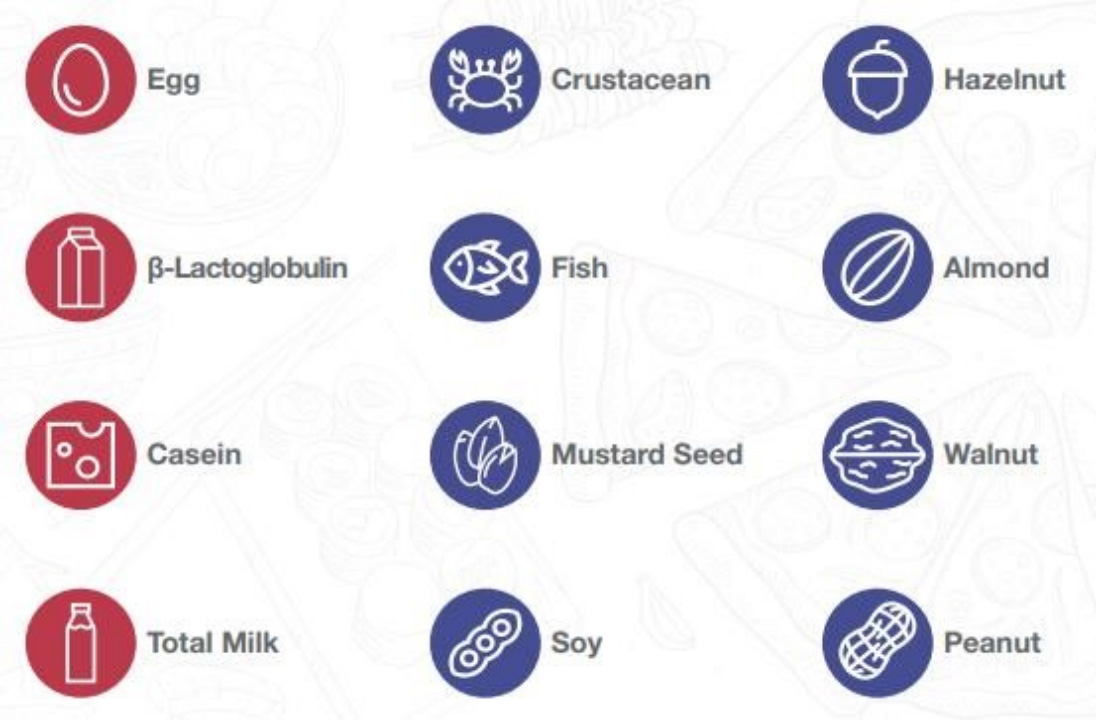

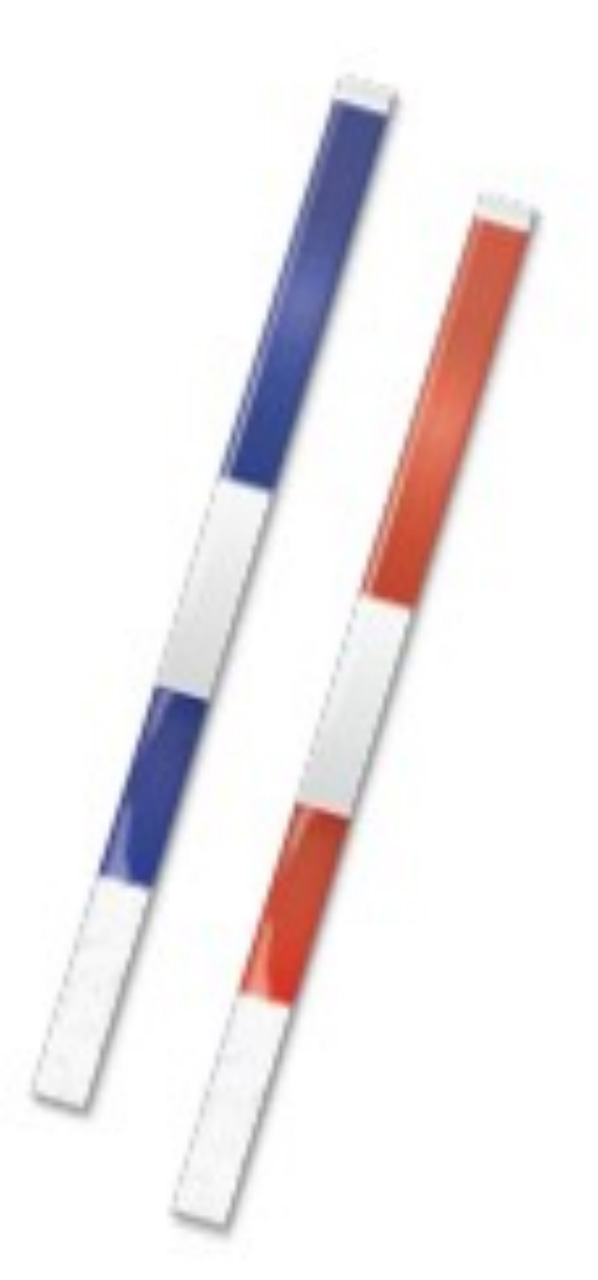

ALerTox Stick

Rapid tests for allergen detection in food, drinks, and surfaces for internal Quality Control.

AlerTox Sticks advantages:

Quick and Reliable

Results in 10 minutes

No Cross-Reactivity

High Sensitivity

AlerTox Sticks are a practical tool for the control of allergen content in raw materials, final products, and working surfaces.

Industrial application

Semi-quantification of allergens in food

Food quality control

Trace allergen contamination in food, liquid and surfaces

Implementation and fulfillment of HACCP, ISO 22000, BRC,and IFS complianc

NOTE: As with any qualitative or semiquantitative test, results should be periodically validated with a quantitative test performed in an outside laboratory

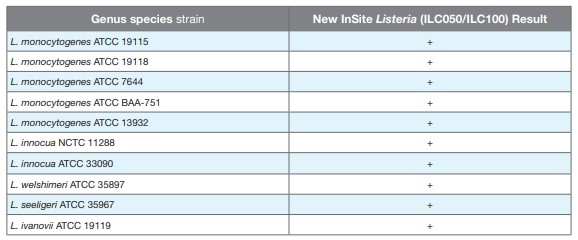

Insite Listeria

InSite Listeria screens for Listeria species. It is used on food contact surfaces, including processing equipment after cleaning to detect Listeria. The test is a self-contained swab device with selective growth medium that inhibits most non-Listeria microorganisms and provides nutrients to support Listeria growth so it can be measured easily and quickly.

Darkening of media to grey/black after 24-48 hours at 37°C indicates a presumptive positive result for Listeria spp.

InSite non-Listeria

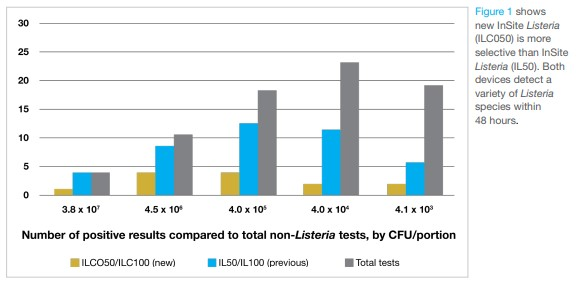

New InSite Listeria reduces presumptive positives from non-Listeria that could survive and grow in previous InSite Listeria tests. A new study by Hygiena evaluated the new test’s ability to detect Listeria species as well as select against non-Listeria. Both devices demonstrated a presumptive positive color change for all Listeria species tested. This is consistent with AOAC-RI certification for InSite media and AOAC-RI certification of new InSite Listeri.

Autoclave

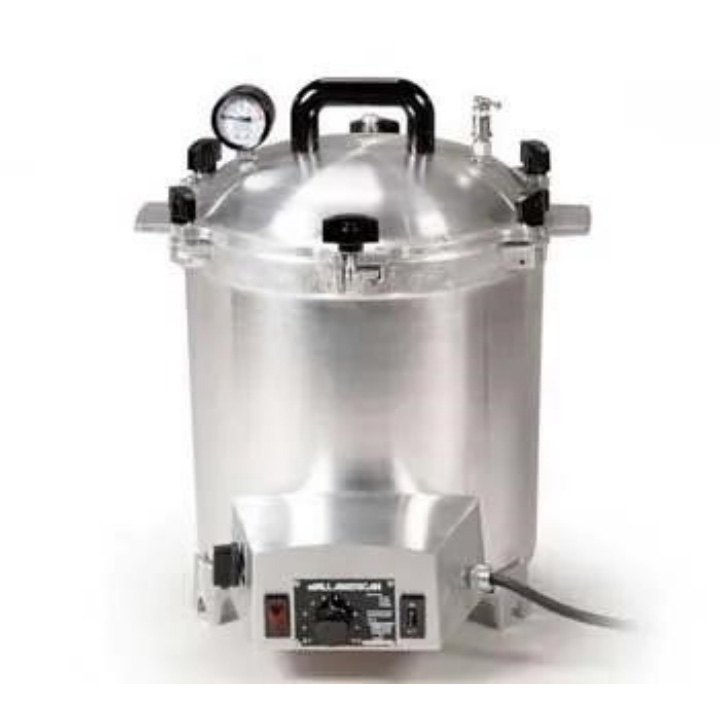

Autoclave small electric 50x

Sterilizer

240 Volt, 50/60 Hz

1650 watts/6.88 amps

Capacity - 25 Quarts (Liquid)

Overall Height - 16 3/4 inches

Bottom Height - 12 1/4 inches

Inside Diameter - 12 5/8 inches

Inner Container

Inside Depth - 8 1/2 inches

Inside Diameter - 11 1/8 inches

Circumference - 35 7/8 inches

Capacity - 14 1/2 Quarts

Made in the U.S.A.

1 Year Limited

Manufacturer's

Warranty

Underwriters

Laboratories Listed

Autoclave large electric 75x

Sterilizer

240 Volt, 50/60 Hz

1650 watts/6.88 amps

Capacity - 41 1/2 Quarts (Liquid)

Overall Height - 19 inches

Bottom Height - 14 1/4 inches

Inside Diameter - 15 1/4 inches

Inner Container

Inside Depth - 10 1/4 inches

Inside Diameter - 14 inches

Circumference - 44 1/2 inches

Capacity - 27 Quarts

Made in the U.S.A.

1 Year Limited

Manufacturer's

Warranty

Underwriters

Laboratories Listed

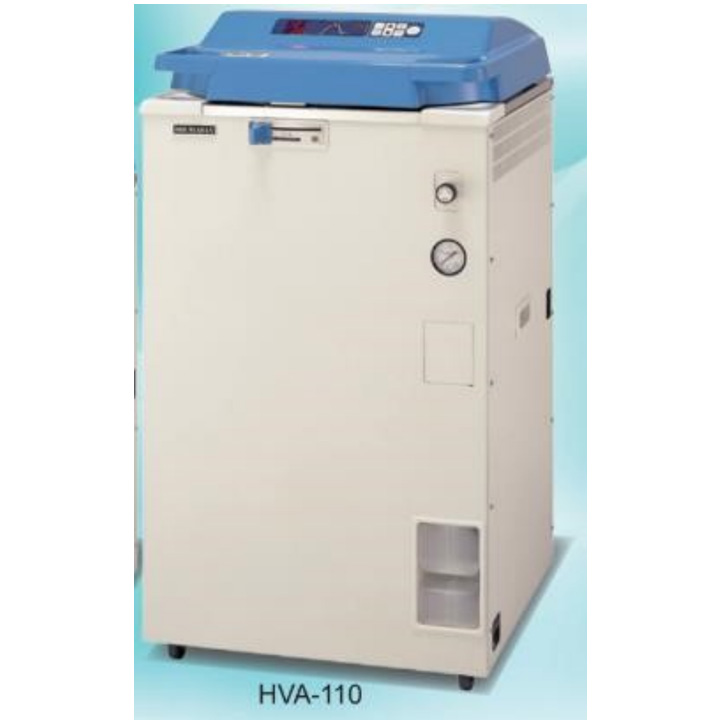

Autoclave HVA 85/110

Centriuge

DM0506

Speed Range : 300-5000rpm,increment: 10rpm

Max. RCF : 2350xg, increment: 10g

Speed accuracy : ±20rpm

Rotor capacity : 6x15ml/10mL/7mL/1.5-5mL

Run Time : 30sec-99min,HD(continuous running)

Programs Memory : 2

D1008

Max. Speed : 7000rpm

Max. RCF : 2680×g

Rotor Capacity : 0.2/0.5/1.5/2.0mL×8; 0.2mL×16 PCR strips or 0.2mL×2 PCR 8 strips

Run Time : Continuous operation

Noise Level : ≤45dB

D2012plus

Max. Speed : 1500rpm), increment:100rpm

Max. RCF : 15100×g, increment: 100×g

Speed Accuracy : ±20rpm

Rotor Capacity : 0.2mL/ 0.5mL/1.5mL/2mL×12

Run Time : 30sec 99min/Continuous

Noise level : ≤54dB

D1524R

Max. Speed : 15,000rpm (200-15,000rpm) in 100rpm increments.

Max. RCF : 21,380×g, step: 10×g

Capacity : 1.5/2mL×24, 0.5mL×36, PCR8×4, 5mL×12, 5mL×18.

Temperature setting : 20℃- 40℃

Timing : 30s-99 min; HOLD (continuous running)

Noise : ≤56dB

D3024

Max.Speed : 15000rpm(200-15000rpm),increment:10rp

Max. RCF : 21380×g, increment:10×g

Speed Accuracy : ±20 rpm

Rotor Capacity 5mL×18, 5mL culture tubex12 0.2mL/0.5mL/1.5mL/ 2mL×24,0.5mL×36,PCR8×4

Run Time 30sec-99min/Continuous

Noise Level 64dB

DM1424

Speed Range : 200-14000rpm, increment: 10rpm

Max. RCF : 18620×g

Speed Accuracy : ±20 rpm

Rotor Capacity : 2 type

Run Time : 30sec-99min/ Continuous

DM0412

Speed Range : 300-4500 rpm,increment: 100rpm

Max. RCF : 2490×g

Speed accuracy : ±20rpm

Rotor type : A12-10P, A650P

DM0424

Speed range : 500-4000rpm increment: 100rpm

Max. RCF : 2500×g

Speed accuracy : ±100rpm

Rotor : Swing6×15ml, Swing4×50ml,Angle 24×15 ml, Angle 12×10ml/8×15ml

Run time : 1-99min, HOLD

Program Blood: 3200rpm,10min. Urine: 1800rpm,5min. Faecal: 1300rpm,10min.

Noise ≤62dB(A)

DM1224

Speed Range : 500-12000rpm, increment: 100rpm

Max. RCF : 13680×g

Speed Accuracy : ±100

Rotor Capacity : 1 type

Run Time : 10sec-99min/Continuous

DM0408

Speed range : 300-4000rpm, increment: 100rpm

Max. RCF : 1900×g

Speed accuracy : ±100rpm

Rotor : Angel 8×15ml (Default),Angel 10ml×12

Run time : 1-99min, HOLD

Noise : ≤60dB(A)

DM0636

Speed range : 300-6000rpm, increment:10rpm

Max. RCF : 4020xg

Speed accuracy : ±20rpm

Max. Capacity : 100mLx4

Run Time : 30sec 99mins/continuous

Program Memory : 9

DNA/RNA Extraction

SpeedMill PLUS

Homogenization time range 1 sec to 4:59 min, total 20-30 min for complete NA purification

Steps of adjusting time 1 sec

Pre-programmed protocols YES

User-defined protocols YES

Storable protocols 20

Number of cycles 1-99

Protocol steps 1-6

Dimensions (W × H × D) 154 × 275 × 257 mm

Weight 12 kg

Power consumption 150 W (max)

Heating Baths

HBR 4 control

Heat output : 1000 W

Heating temperature range room temp. : -200 °C

Set temperature resolution : ±1 K

Controller oscillation (3 l water / 90 °C) : ±1 K

Controller oscillation (3l Silicone oil / 50mPas / 150°C) : ±2 K

Filling volume max. : 4 l

Filling point min. : 20 mm

Adjustable safety circuit : 50 - 210 °C

Permissible ambient temperature max. : 40 °C

Permissible relative humidity : 80 %

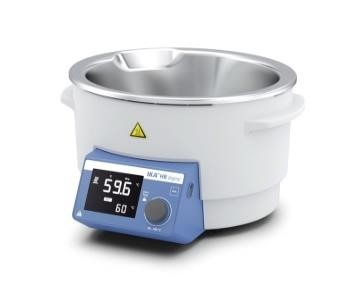

HB eco

Heat output : 1400 W

Heating temperature range room temp. : - 99 °C

Set temperature resolution : ±1 K

Controller oscillation (3 l water / 90 °C) : ±1 K

Absolute deviation/mean (3l water / 90 °C) : ±2 K

Filling volume max. : 4 l

Filling point min. : 60 mm

Fixed safety circuit : 109 °C

Permissible ambient temperature : 5 -40 °C

Permissible relative humidity : 80 %

HB digital

Heat output : 1400 W

Heating temperature range room temp. : - 180 °C

Set temperature resolution : ±1 K

Controller oscillation (3 l water / 90 °C) : ±1 K

Absolute deviation/mean (3l water / 90°C) : ±2 K

Controller oscillation (3l Silicone oil / 50mPas / 150°C) : ±2 K

Absolute deviation/mean (3 l Silicone oil / 50mPas/ 150°C) : ±4 K

Filling volume max. : 4 l

Filling point min. : 60 mm

Fixed safety circuit : 190 °C

Adjustable safety circuit : 50 - 190 °C

Permissible ambient temperature : 5 -40 °C

Permissible relative humidity : 80 %

Hotplate & Magnetic Stirrer

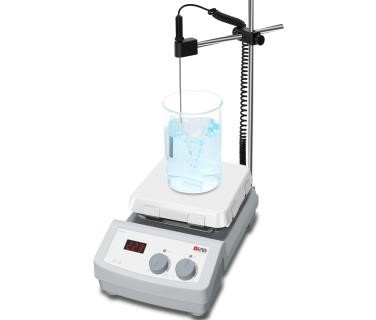

MS7-H550-S

Motor rating input : 15W

Motor rating output : 1.5W

Heating output : 1000W

Stirring positions : 1

Max. stirring quantity, [H2O] : 10L

Max. magnetic bar[length] : 80mm

Speed range : 0-1500rpm

Heating temperature range : Room temp.-550°C, increment 5°C

Temperature control : accuracy±10°C

Overheating protection : 580°C

External temperature sensor : PT1000 (accuracy ±0.2)

"Hot" warning : 50°C

Permissible ambient temperature and humidity : 5-40°C, 80%RH

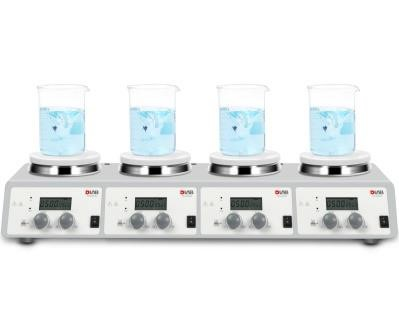

MS-H340-S4

Work plate dimension : Φ135mm(5inc） Motor rating input : 1.8W×4

Heating Power : 500W×4

Stirring positions : 4

Max. stirring quantity of single position (H2O) : 10L

Max. magnetic bar : 40mm

Speed range : 200-1500rpm

Control accuracy of sensor[rpm] : ±20

Temperature range : 25-340℃

Over temperature protection : 420°C

External temp. sensor : PT1000（Accuracy±0.2℃

Permissible ambient temperature : 5～40°C

Permissible relative humidity : 80%RH

MS7-S

Speed Range : 20-200rpm

Heating Temperature Range : Room temp. to 180℃

Control Accuracy : water: ±1℃ oil: ±3℃

Heating Power : 1010 W

Stroke Displacement : Manual 110mm + auxiliary100mm

Interval Time Setting Range : 1~999s

Heating Bath: 300x300x240mm

Permissible Ambient Temperature : 5~40 ℃

Permissible Relative Humidity : 80%RH

Liquid Handling

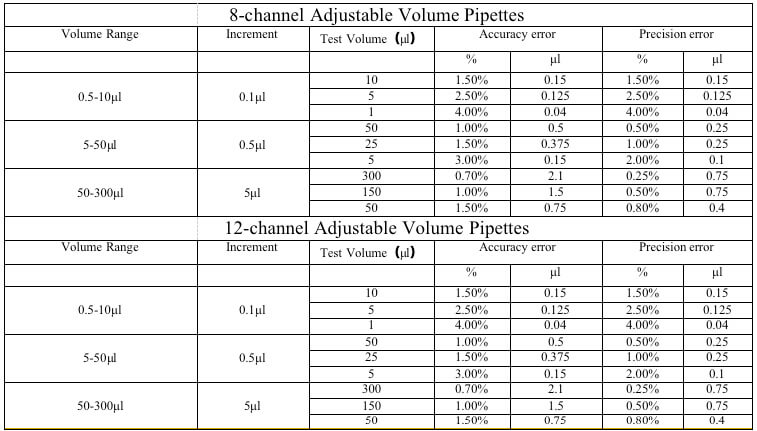

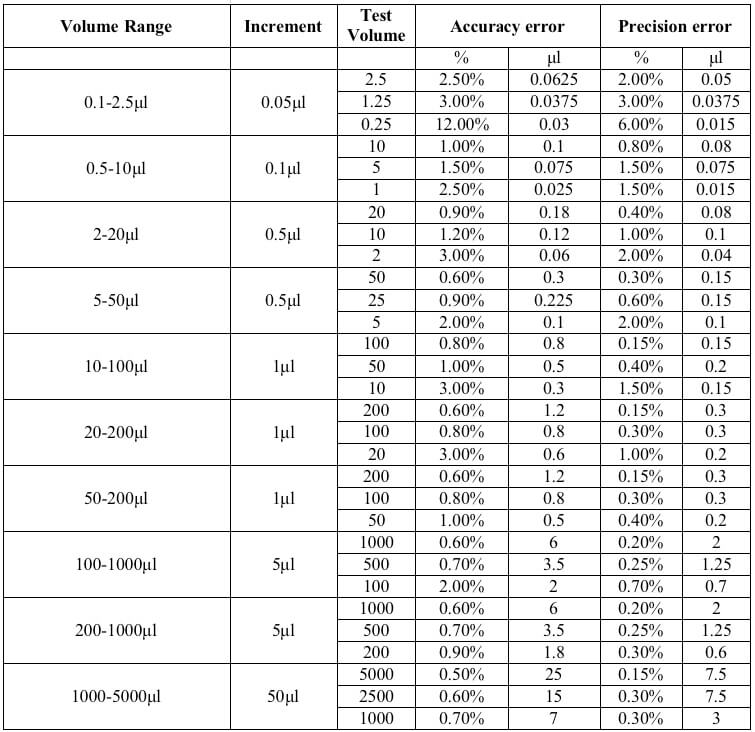

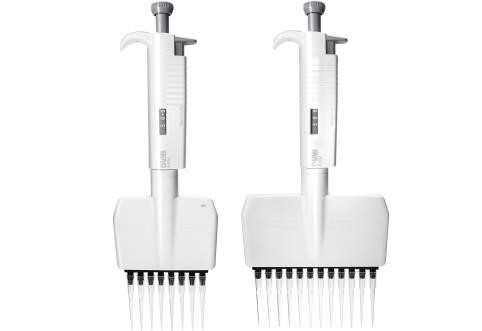

MicroPette Plus

Levo Plus

PCR dan Support Equipment

Biometra TRIO

Capacity 3 blocks independent @ 48-well, 6x 8-well strips

Max. heating rate * 5.0 °C/s

Max.cooling rate * 4.2 °C/s

Temperature uniformity : 55 °C ± 0.20 °C after 15 s

70 °C ± 0.30 °C after 15 s

95 oC + 0.60 °C after 15 s

Temperature range 3 °C to 99 °C

Control accuracy ± 0.1 °C

Biometra TAdvanced

Quick Block exchange in less than 10s

Max. heating rate * 8.0 °C/s

Max.cooling rate * 5.5 °C/s

Avg. heating rate * 7.0 °C/s

Avg. cooling rate * 4.5 °C/s

Max./Min. gradient* 40 °C/0.1 °C

Temperature uniformity : 95 oC + 0.50 °C after 15 s

70 °C ± 0.25 °C after 15 s

55 °C ± 0.15 °C after 15 s

Gradient temperature range 4 °C to 99 °C

Temperature range 3 °C to 99 °C

Control accuracy ± 0.1 °C

HB120-S

Block Aluminum, special alloy

Max. heating rate 4.0 °C/s

Max. cooling rate 3.3 °C/s

Max./min. gradient2 20 °C/0.1 °C (for G series)

Gradient temperature range2 20 °C bis 99 °C (for G series)

Temperature uniformity at 55 °C ± 0.20 °C (after 15s)

Temperature range 3 °C to 99 °C

Control accuracy ± 0.1 °C

Lid temperature range 30 °C to 110 °C

Rotary Evaporator

RE200-Pro

Temperature range : Room temp. ~180℃(both water and oil)

Control Accuracy : Water: ±1℃Oil: ±3℃

Rotation Speed : 10~150rpm

Evaporation capacity : Max.4.0L/h (water vapor volume)

Ultimate vacuum : Less 2.6hpa

Sample flask : Round flask 20L

Receiving flask : Round flask 10L with drain valve

Condenser : Two-section vertical triple serpentine condenser,cooling surface 1.2m2

Heating bath size : φ450×240mm

RE100-Pro

Speed Range : 20-280rpm

Heating Temperature Range : Room temp. to 180℃

Control Accuracy : water: ±1℃ oil: ±3℃

Heating Power : 1300W

Stroke Displacement : automatic 150mm

Time Setting Range : 1-999min

Permissible Ambient Temperature : 5-40℃

Permissible Relative Humidity : 80%RH

RE100-S

Speed Range : 20-200rpm

Heating Temperature Range : Room temp. to 180℃

Control Accuracy : water: ±1℃ oil: ±3℃

Heating Power : 1010 W

Stroke Displacement : Manual 110mm + auxiliary100mm

Interval Time Setting Range : 1~999s

Heating Bath: 300x300x240mm

Permissible Ambient Temperature : 5~40 ℃

Permissible Relative Humidity : 80%RH

Shaker

ROCKER 3D digital

Temperature range : Room temp. ~180℃(both water and oil)

Control Accuracy : Water: ±1℃Oil: ±3℃

Rotation Speed : 10~150rpm

Evaporation capacity : Max.4.0L/h (water vapor volume)

Ultimate vacuum : Less 2.6hpa

Sample flask : Round flask 20L

Receiving flask : Round flask 10L with drain valve

Condenser : Two-section vertical triple serpentine condenser,cooling surface 1.2m2

Heating bath size : φ450×240mm

ROLLER 6 digital

Speed Range : 20-280rpm

Heating Temperature Range : Room temp. to 180℃

Control Accuracy : water: ±1℃ oil: ±3℃

Heating Power : 1300W

Stroke Displacement : automatic 150mm

Time Setting Range : 1-999min

Permissible Ambient Temperature : 5-40℃

Permissible Relative Humidity : 80%RH

Loopster digital

Speed Range : 20-200rpm

Heating Temperature Range : Room temp. to 180℃

Control Accuracy : water: ±1℃ oil: ±3℃

Heating Power : 1010 W

Stroke Displacement : Manual 110mm + auxiliary100mm

Interval Time Setting Range : 1~999s

Heating Bath: 300x300x240mm

Permissible Ambient Temperature : 5~40 ℃

Permissible Relative Humidity : 80%RH

Spectrophotometers

SP-V1100

Spectral Bandwidth : 2.0nm

Wavelength Range : 320-1100nm

Wavelength Accuracy : ±0.5nm

Wavelength Repeatability : ≤0.3nm

Photometric Range : -0.3-3.0A， 0-200%T

Photometric Accuracy : ±0.002A@0.5A,±0.004A@1.0A, ±0.3%T@100%T

Photometric Repeatability : ≤0.001A@0.5A,≤0.002A@1.0A, ≤0.15%T@100%T

Stability : ≤0.002A/h @500nm (after preheat 2 hours)

Stray Light : ≤0.05%T@360nm

Sample Compartment : 4-position,10mm

SP-V1000

Spectral Bandwidth : 4.0nm

Wavelength Range : 325-1000nm

Wavelength Accuracy : ±2nm

Wavelength Repeatability : ≤1nm

Photometric Range : -0.3-3.0A， 0-200%T

Photometric Accuracy : ±0.003A@0.5A,±0.006A@1.0A,±0.5%T@100%T

Photometric Repeatability : ≤0.0015A@0.5A, ≤0.003A@1.0A,≤0.25%T@100%T

Stability : ≤0.002A/h @500nm (after preheat 2 hours)

Stray Light : ≤0.2%T@360nm

Sample Compartment : 4-position,10mm

SP-UV1100

Spectral Bandwidth : 2.0nm

Wavelength Range : 190-1100nm

Wavelength Accuracy : ±0.5nm

Wavelength Repeatability : ≤0.3nm

Photometric Range : -0.3-3.0A， 0-200%T

Photometric Accuracy : ±0.002A@0.5A, ±0.004A@1.0A,±0.3%T@100%T

Photometric Repeatability : ≤0.001A@0.5A, ≤0.002A@1.0A,≤0.15%T@100%T

Stability : ≤0.002A/h @500nm(after preheat 2 hours)

Thermo Controls

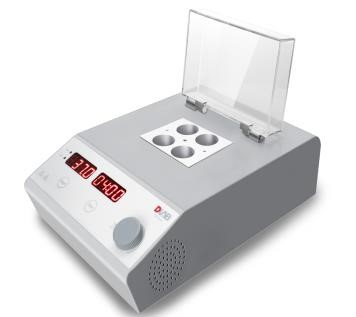

HB105-S1

Temperature range[°C] : Room temp +5~105

Temperature setting range [°C] : 25~105

Temperature control accuracy[°C : 25~90：±0.3 dan 90~150：±0.6

Uniformity@37℃ [°C] : ±0.2

Operating temperature[°C] : +10~40

Operating humidity [% RH] : <80

HCM100-Pro

Temperature range : Heating: room temp. - 100°C Cooling: room temp. - below room temp. 15°C

Temperature setting range : 0.1-100℃

Temperature control accuracy: ± 0.5°C

Temperature uniformity : Max.± 0.5°C

Max. heating rate : 5.5°C/min

Max. cooling rate : 5°C /min(100°C room temp.), 0.5°C/min(below room temp.)

Mixing frequency : 200-1500rpm

Mixing orbit : 3mm

Overheating protection : 150°C

HB120-S

Temperature range : Room temp.-120°C

Temperature control accuracy[at 37℃] : ± 0.5°C

Temperature uniformity : ± 0.5°C

Max. heating rate : 5.5°C/min

Timer : 1min-99h59min

Overheating protection : 140°C

Vacuum

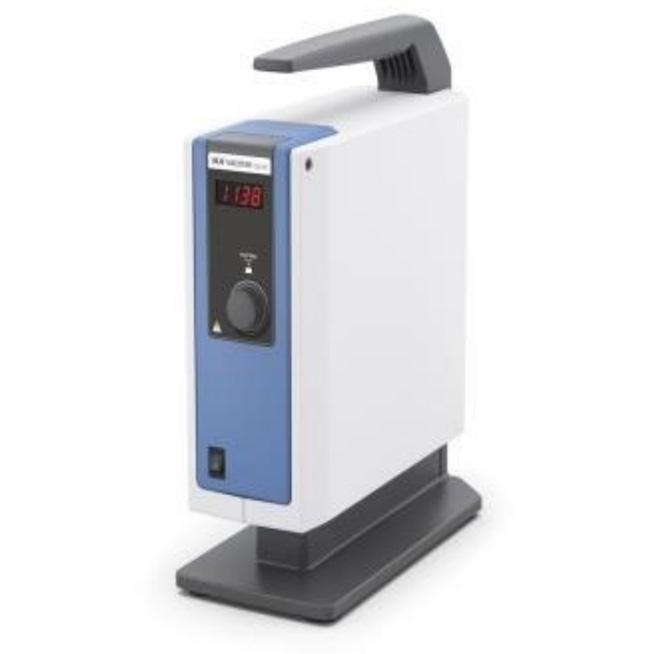

VACSTAR digital (Pump)

Pump rate max. (50/60Hz) : 1.32 m³/h

Pump rate max. (50/60Hz) : 22 l/min

Final pressure without gas ballast : 2 mbar

Input pressure : 2 - 1030 mbar

Speed range : 285 - 1200 rpm

Noise at low. Pressure : 54 dB(A)

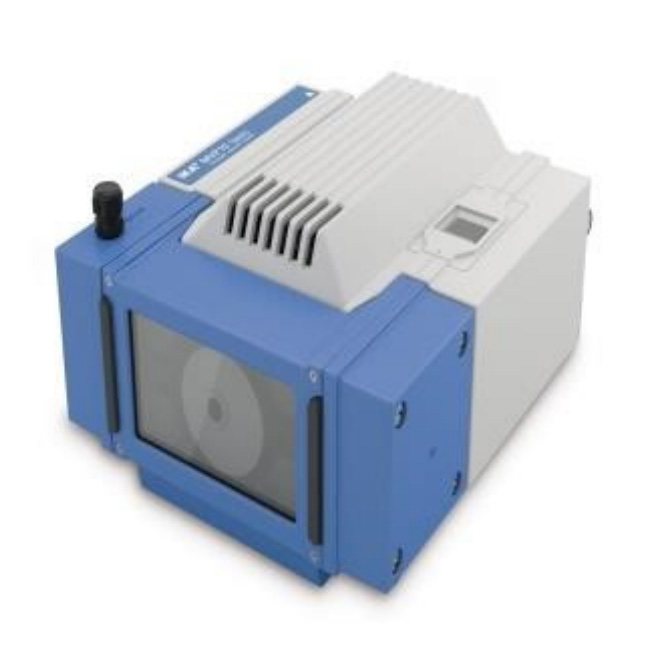

MVP 10 basic vacuum pump

Pump rate max. (50/60Hz) : 1.7 m³/h

Pump rate max. (50/60Hz) : 28.3 l/min

Final pressure without gas ballast : 7 mbar

Input pressure : 7 - 1050 mbar

Speed (50Hz) : 1380 rpm

Speed (60Hz) : 1680 rpm

Noise at low. Pressure : 65 dB(A)

Overheating protection : 150°C

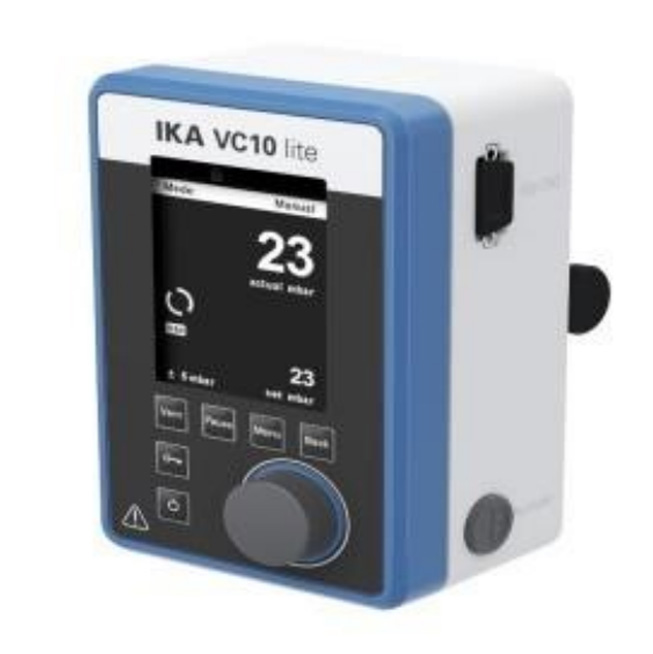

VC 10 lite Controller

Input pressure : 1 - 1050 mbar

Pressure max. for pressure sensor : 1.6 bar

Measurement range (absolute) : 1 -1100 mbar

Control range : 1 - 1100 mbar

Measurement uncertaint : 1 mbar

Medium temperature (gas) : 5 - 40 °C

Time setting min. : 1 s

Time setting max. : 6000 min

Viscometers

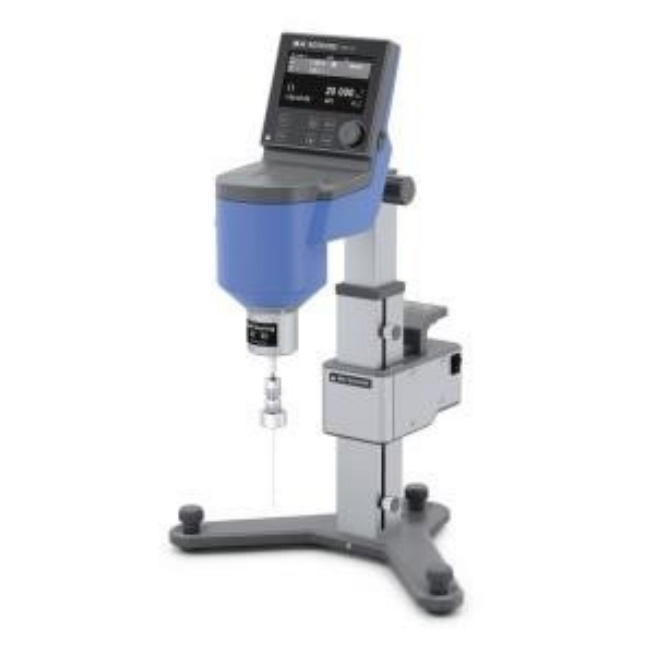

ROTAVISC SBS me-vi

Viscosity Measuring Range : 40000000 mPas

Viscosity Accuracy (FSR) : 1 %

Viscosity Repeatibility (FSR) : 0.2 %

Spring torque : 0.7187 mNm

Speed range : 0.01 - 200 rpm

Setting accuracy speed : ±0.01 rpm

Time setting range : 0.017 - 6000 min

Basic container volume : 600 ml

ROTAVISC SBS me-vi HELI

Viscosity Measuring Range : 40000000 mPas

Viscosity Accuracy (FSR) : 1 %

Viscosity Repeatibility (FSR) : 0.2 %

Spring torque : 0.7187 mNm

Speed range : 0.01 - 200 rpm

Setting accuracy speed : ±0.01 rpm

Time setting range : 0.017 - 6000 min

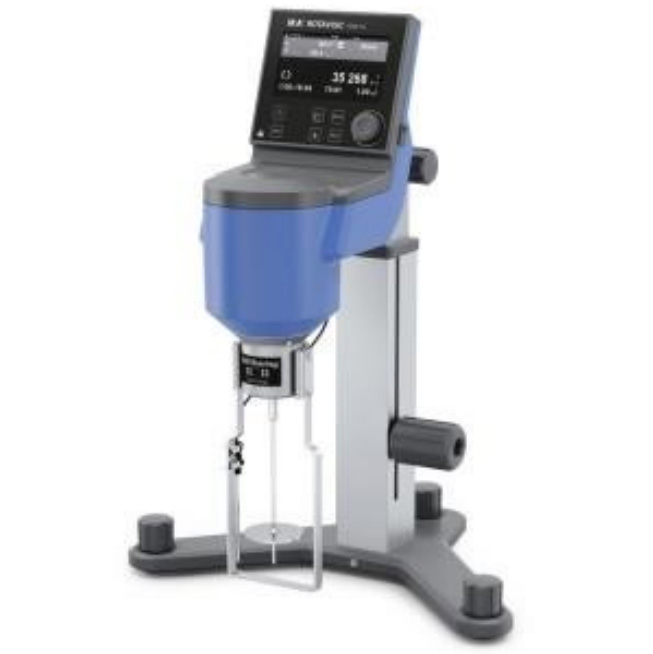

ROTAVISC lo-vi

Viscosity Measuring Range : 6000000 mPas

Viscosity Accuracy (FSR) : 1 %

Viscosity Repeatibility (FSR) : 0.2 %

Spring torque : 0.0673 mNm

Speed range : 0.01 - 200 rpm

Setting accuracy speed : ±0.01 rpm

Time setting range : 0.017 - 6000 min

Vortex Mixer

Hula Dancer digital

Diameter shaker : 4.5 mm

Berat pengguncnag yang diizinkan ( termasuk kelengkapan) : 0.1 kg

Motor rating input : 9.5 W

Motor rating output : 5 W

Kecepan minimal ( dapat disesuaikan) : 1200 rpm

Kecepatan maksimal : 2800 rpm

Temperatur lingkungan yang dizinkan : 5 - 40 °C

Kelembapan relatif yang diizinkan : 80 %

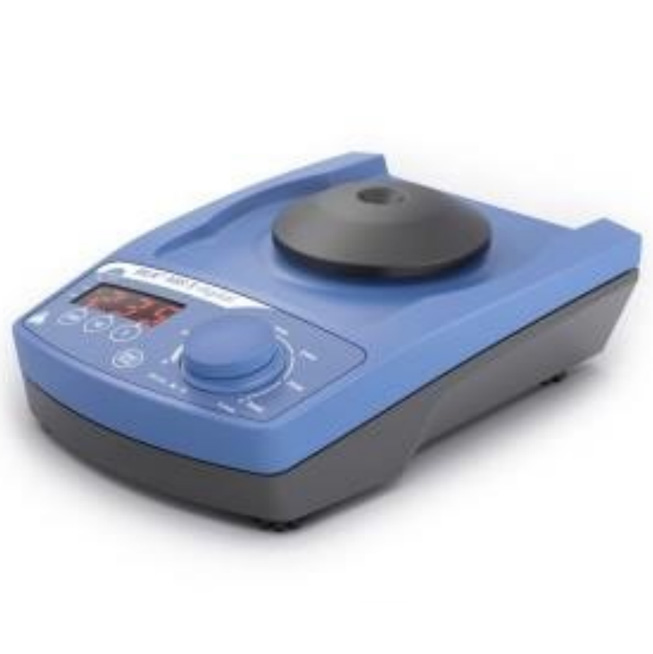

MS 3 digital

Diameter shaker : 4.5 mm

Berat pengguncnag yang diizinkan ( termasuk kelengkapan) : 0.5 kg

Motor rating input : 10 W

Motor rating output : 8 W

Kecepan minimal ( dapat disesuaikan) : 200 rpm

Range kecepatan : 0 - 3000 rpm

Pengaturan waktu minimal : 1 s

Rentang Pengaturan waktu : 1 - 999 min

Temperatur lingkungan yang dizinkan : 5 - 40 °C

Kelembapan relatif yang diizinkan : 80 %

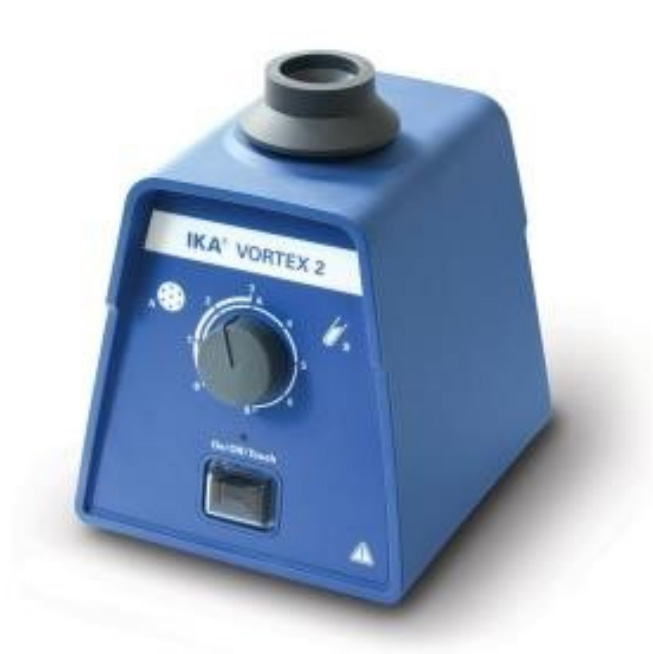

Vortex 2

Diameter shaker : 4 mm

Berat pengguncnag yang diizinkan ( termasuk kelengkapan) : 0.4 kg

Motor rating input : 39 W

Motor rating output: 9 W

Kecepatan minimal ( dapat disesuaikan) : 500 rpm

Kecepatan maksimal : 2500 rpm

Pengatur kecepatan skala : 0-6 Temperatur lingkungan yang dizinkan : 5 - 40 °C

Kelembapan relatif yang diizinkan : 80 %
